Industrial server with 1U and 225mm installation depth

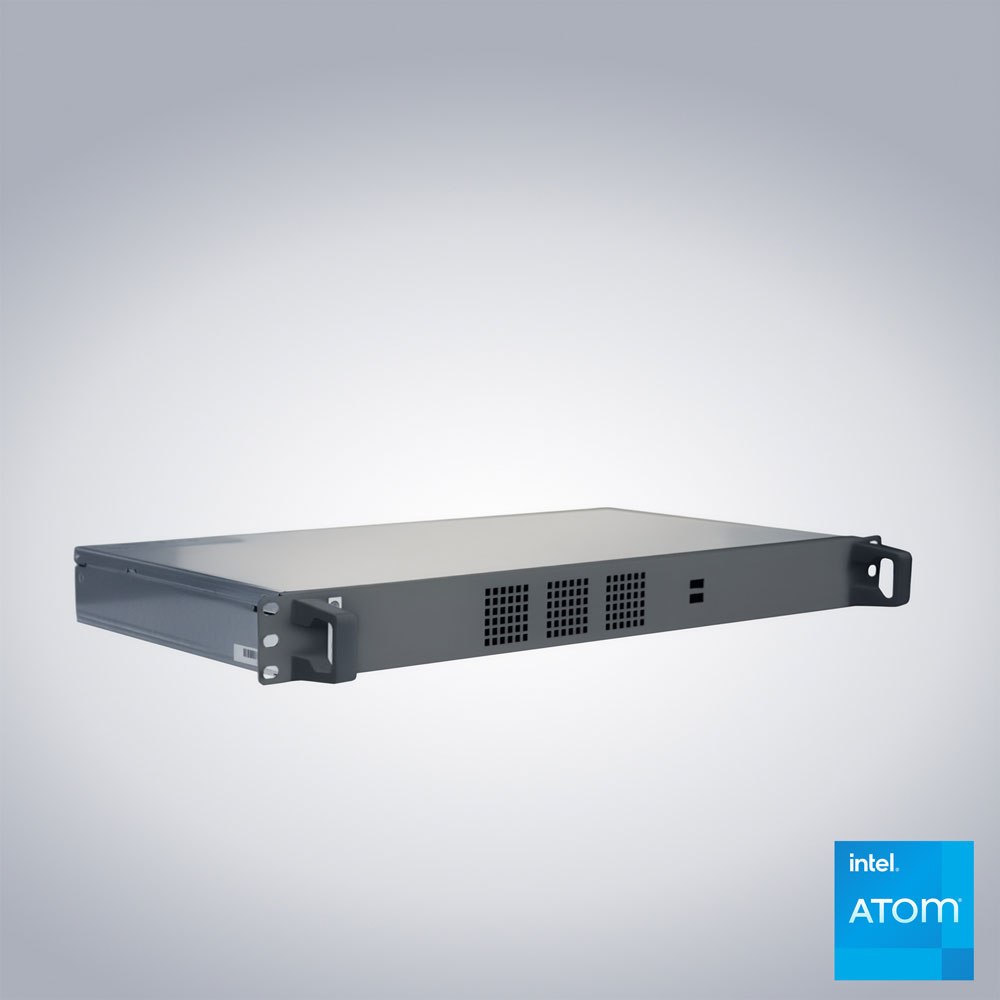

AKHET® industrial server Endurance R1U225i

Endurance R1U225i is a compact 1U rack server and is characterized above all by its low installation depth from 225 mm.

It is primarily designed for energy efficiency and stable continuous operation. With its Intel® Atom processor, it is aimed less at maximum performance and more at reliable availability with low power consumption.

Particularly noteworthy are the four Gigabit Ethernet interfaces, which predestine the server for network applications, edge gateway functionalities or redundant connectivity.

Overall, the Endurance R1U225i is ideal as an energy-efficient, compact edge or gateway server.

Typical fields of application are industrial IoT applications, security appliances, monitoring and infrastructure projects or compact data center and virtualization tasks with moderate performance requirements.

learn more

Request now Start configuration

19″ rack server with 1U and 225mm installation depth
for industrial environments:

Edge server in industrial environments:
Collecting, pre-processing and forwarding production and sensor data.
Use as an IoT gateway with multiple network connections.
Firewall/security appliance:
Thanks to 4× LAN interfaces, predestined for security software (e.g. pfSense, OPNsense) or network segmentation.
Remote management & monitoring:
Central monitoring of systems or infrastructure (e.g. energy supply, transportation, smart building).
Storage-oriented tasks at the edge:
Data logging, backup system or archive server in an industrial environment.

Processor: Intel® Atom
Graphics: Intel® HD
Chipset: Intel® SoC
Memory: DDR4
Boot drive: up to 1 TB M.2 NVMe SSD
LAN: 4 x 1 GbE Intel® l210IT
Mounting depth: 225 mm
Mounting: 1U rackmount
Expansion slots: 1 x PCIe x2 (in x8 slot)

Front I/O
Power button
LED
Rear I/O
2 x USB 3.1
2 x USB 2.0
4 x RJ-45
2 x Displayport
1 x HDMI
1 x VGA
DC/AC-in

Dimensions: (WxDxH) 431 x 225 x 44 mm
Material: powder-coated steel RAL 9005
Weight: approx. 4 kg
Mounting: 1U rackmount

Temperature:
Storage: -20°C to +60°C
in operation: 0°C to 35°C
Humidity:
in storage: 10% to 95% *
in operation: 10% to 85%

* non-condensing

Data sheet

AKHET® Platform For OEM solutions

AKHET® Endurance series is based on our modular VarioFlex platform. We use it to develop not only our standard portfolio of industrial servers, but also OEM solutions for customers with very specific hardware requirements.

You haven't found an Endurance system that fits your use case perfectly?

Then familiarize yourself with the VarioFlex platform here. On this page, we show you what we can do for you as an OEM and how we can develop your dream server from the platform: tailored to your specifications, cost-efficient and with a fast time-to-market.

More about VarioFlex platform Our OEM/ODM services
