Motion Lite

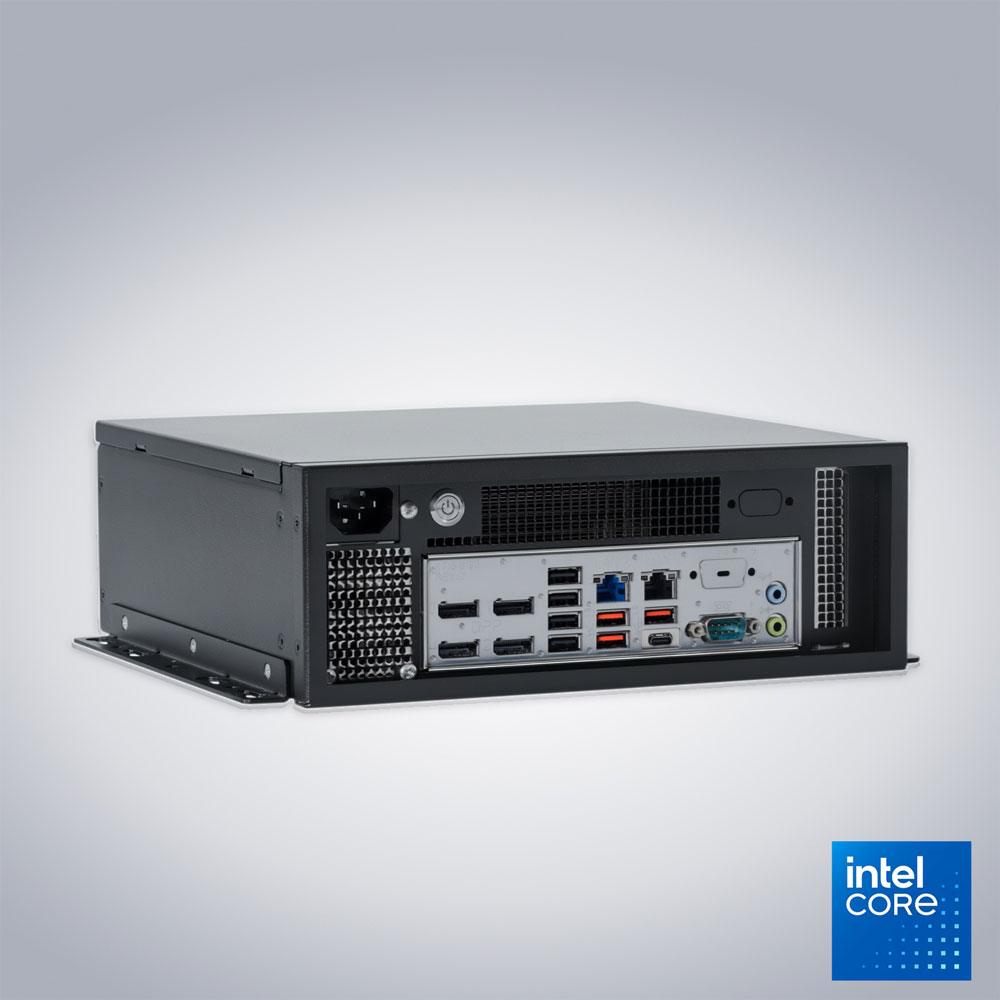

AKHET® Industrial PC Motion Lite

Dimensions of just 260 mm × 246 mm (W × D) and 2 U make the system the most compact variant in the Motion series.

With two 2.5 GBit/s network interfaces that support time-sensitive networking and the optional M.2 SIM card slot, the Motion Lite is suitable for machine control, process visualization (HMI, SCADA) and as an edge device for standard data processing in the IIoT.

The sturdy metal housing and dust filter make the Motion Lite ideal for use in industrial environments: directly in the machine, in control cabinets, on walls or as a desktop version.

The Motion Lite benefits from Pyramid Computer GmbH's European supply chain.

learn more

Request now Start configuration

For machines and industrial systems

Processor: Intel® Core™ processors (12th/13th/14th Gen)
Mounting: wall, table, switch cabinet, machine integration
Connections: Front I/O
Filter: Dust filter
Cooling: Active

Processor: Intel® Core™ processors (12th/13th/14th Gen)
Graphics: Intel® UHD Graphics 7xx
Chipset: Intel® Q670E
Memory: up to 64 GB DDR5
Drives: up to 4 TB M.2 NVMe SSD BootDrive
LAN:
- 1 x 1 GbE (Intel® i219LM)
- 1 x 2.5 GbE (Intel® i226LM)
Remote management: Intel® iAMT
Expansion slots ^*
- 1 x PCIe x16
- 1 x PCIe x4
- 2 x PCIe x1

^* low profile

Front I/O:
- 4 x DisplayPort V1.4a up to 8K
- 3 x RJ45
- 4 x USB 3.2 Gen1 (Type-A)
- 1 x USB 3.2 Gen 2 (Type-C)
- 4 x USB 3.2 Gen2 (Type-A)
- 1 x RS232
- Audio
- AC-in
- Power button
Rear I/O:
- Dust filter (replaceable)

Dimensions (WxDxH): 247 x 247 x 88 mm
Material: steel, RAL 9005 powder-coated
Weight: Approx. 4 kg
Mounting: Desktop, wall mounting,

Temperature:
- Storage temperature -20°C to +60°C
- in operation: 15°C to 40°C
Humidity:
- in stock 10% to 95 ^*
- in operation: 10% to 80%

^* non-condensing

Data sheet

2U industrial PC Reliable performance in a compact format

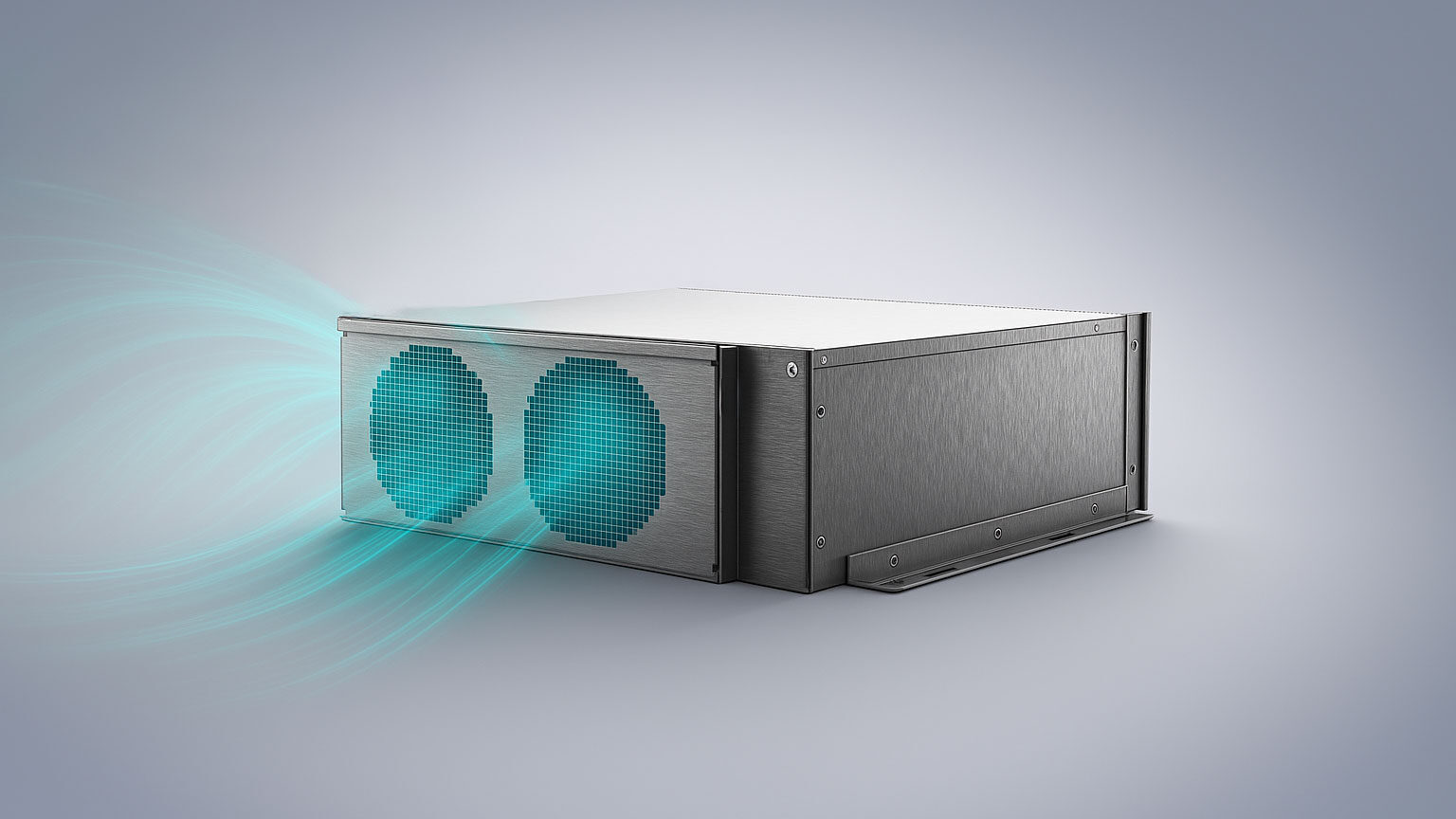

The Motion Lite concentrates a lot of power in a small space. This makes the system ideal for installation in environments where every square centimeter of space counts. An optimized ventilation system ensures stable continuous operation, even at ambient temperatures of up to 40 °C, thus guaranteeing high operational reliability in 24/7 use.

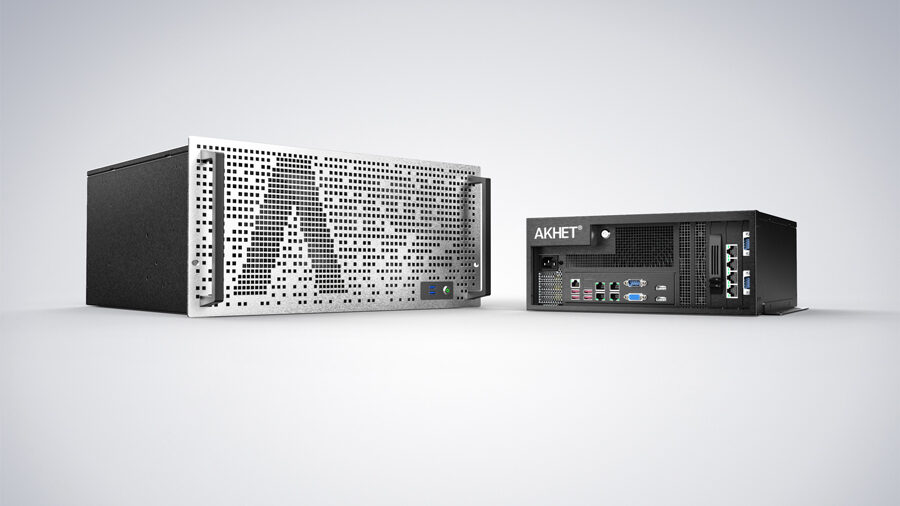

AKHET® Boxflex platform For OEM solutions

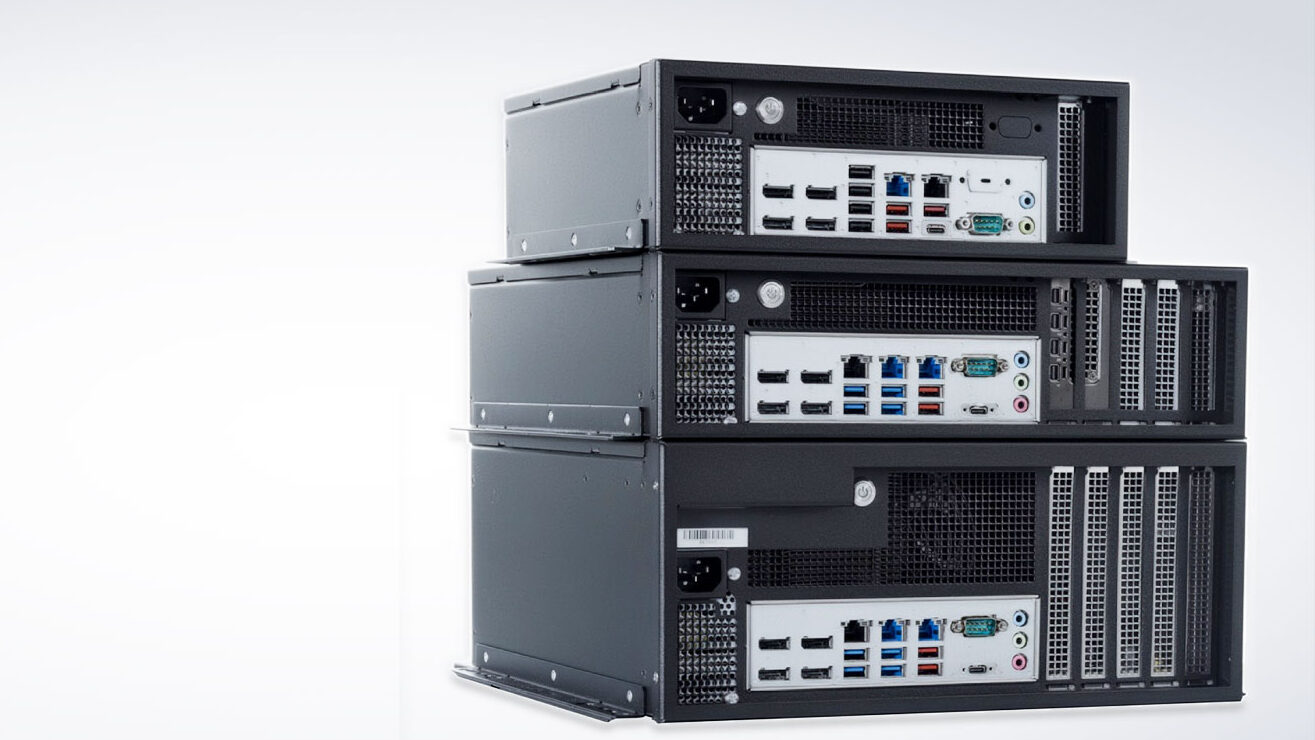

The AKHET® Motion series is based on our modular BoxFlex platform. We use it to develop not only Pyramid's standard IPC portfolio, but also OEM solutions for customers with very specific hardware requirements.

You haven't found a motion system that fits your use case perfectly?

Then familiarize yourself with the BoxFlex platform here. On the page, we show you what we can do for you as an OEM and how we can develop your desired IPC from the platform: tailored to your specifications, cost-efficient and with a fast time-to-market.
