Motion Pro

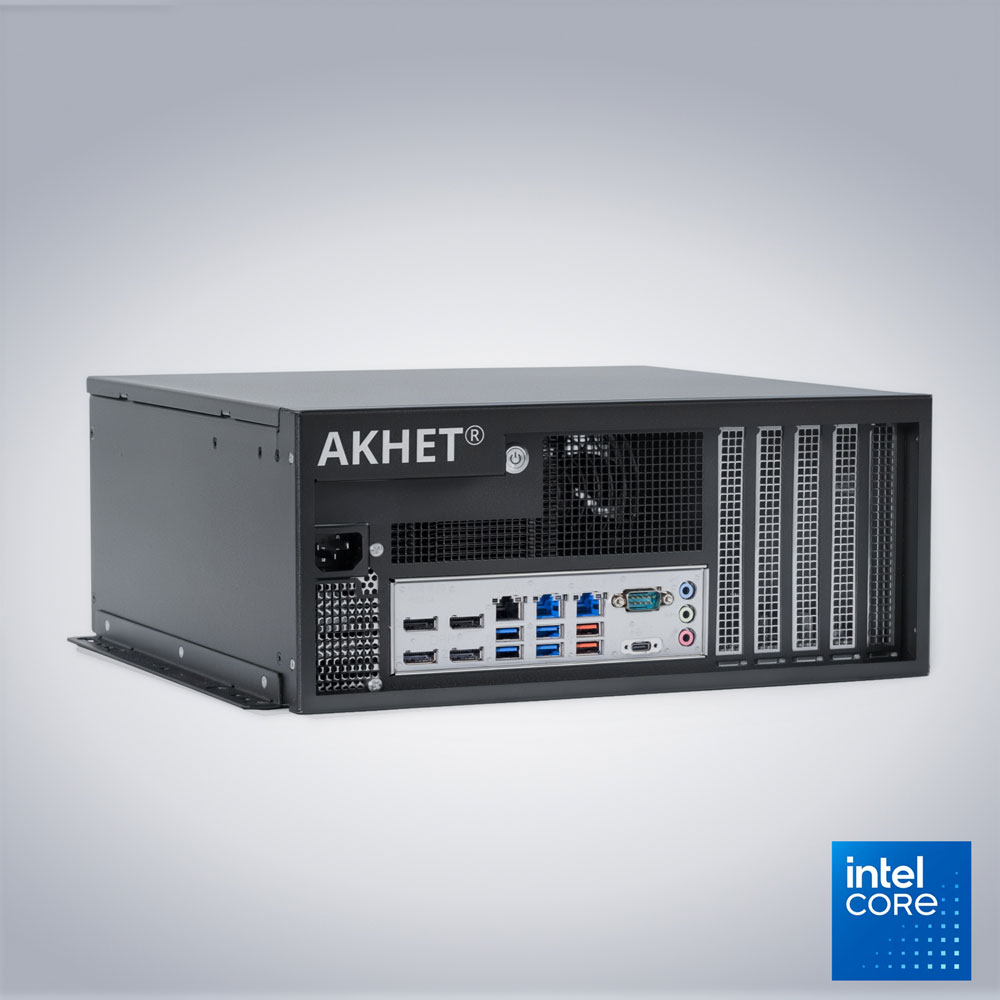

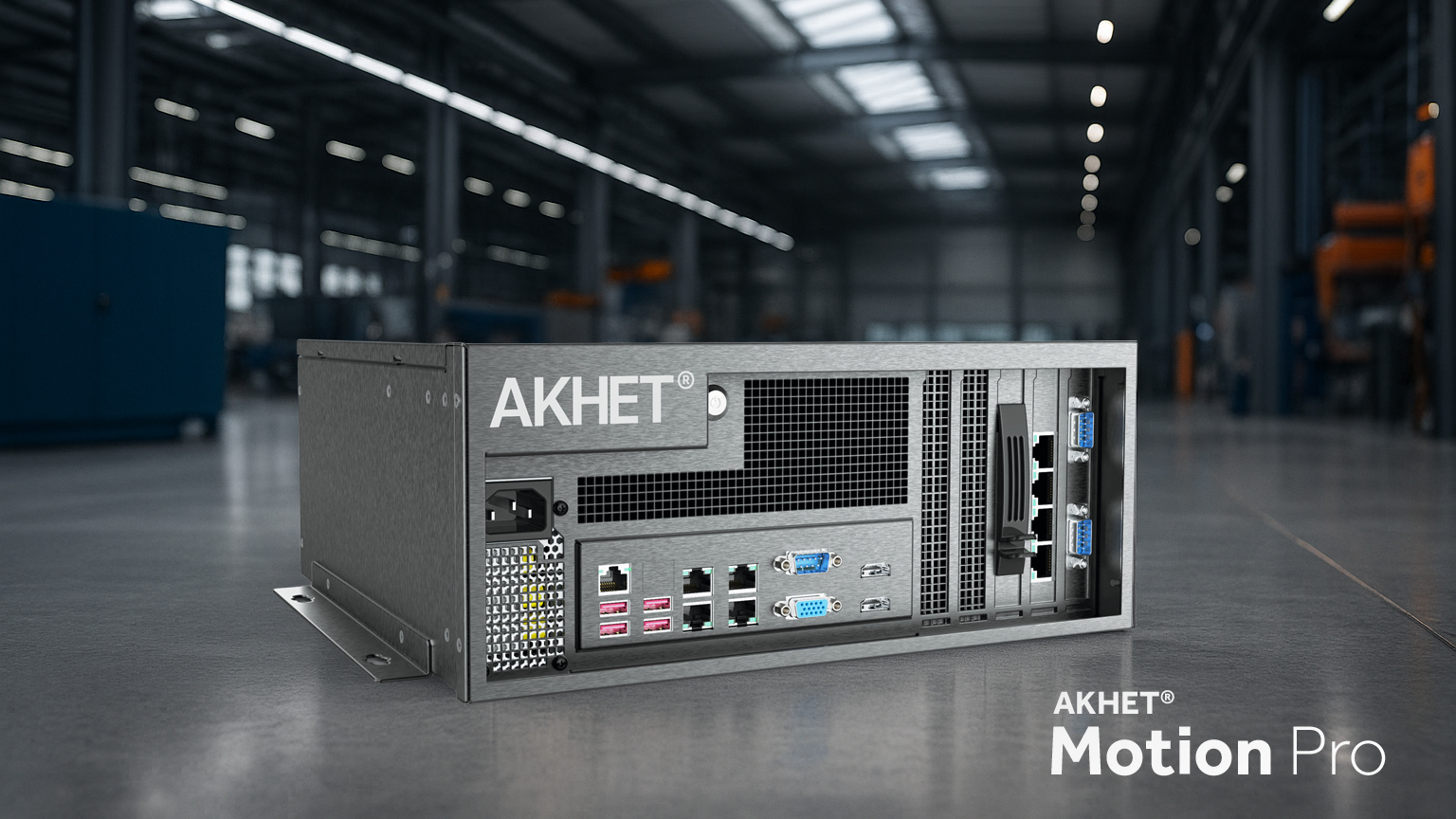

AKHET® Industrial PC Motion Pro

With the latest Intel® Bartlett technology, 17 front-side connections and 5 expansion slots, the compact IPC is suitable for the most demanding application scenarios.

The Motion Pro can be easily equipped with common camera interfaces such as GigE Vision, PoE, USB 3.0, FireWire, CameraLink (CL) and CoaXPress (CXP) as well as GPUs.

With this configuration, it shines in industrial image processing, AI-supported quality control, high-end edge computing, predictive maintenance and other performance-hungry applications in the industrial environment.

The sturdy metal housing and the G2 dust filter make the Motion Pro ideal for use directly in the machine, in control cabinets, on walls or as a desktop version.

The Motion Pro benefits from Pyramid Computer GmbH's European supply chain.

learn more

Request now Start configuration

Maximum power thanks to two 120 mm fans
for industrial systems & machine visualization

Processor: Intel® Core™ processors (12th/13th/14th Gen)
Mounting: wall, table, switch cabinet, machine integration
Connections: Front I/O
Filter: Dust filter
Cooling: Active

Processor: Intel® Core™ processors (12th/13th/14th Gen)
Graphics: Intel® UHD Graphics 7xx
Chipset: Intel® Q670E
Memory: up to 128 GB DDR5
Drives:
- up to 4 TB M.2 NVMe SSD BootDrive
- up to 4 TB NVMe Datadrive
LAN:
- 1 x 1 GbE (Intel® i219LM)
- 2 x 2.5 GbE (Intel® i226LM)
Remote management: Intel® iAMT
Expansion slots ^*
- 1 x PCIe x16
- 1 x PCIe x4
- 2 x PCIe x1

^* low profile

Front I/O:
- 4 x DisplayPort V1.4a up to 8K
- 3 x RJ45
- 4 x USB 3.2 Gen1 (Type-A)
- 1 x USB 3.2 Gen 2 (Type-C)
- 4 x USB 3.2 Gen2 (Type-A)
- 1 x RS232
- Audio
- AC-in
- Power button
Rear I/O:
- Dust filter (replaceable)

Dimensions (WxDxH): 316 x 316 x 133 mm
Material: steel, RAL 9005 powder-coated
Weight: Approx. 6 kg
Mounting: Desktop, wall mounting,

Temperature:
- Storage temperature -20°C to +60°C
- in operation: 15°C to 35°C
Humidity:
- in stock 10% to 95 ^*
- in operation: 10% to 80%

^* non-condensing

Data sheet

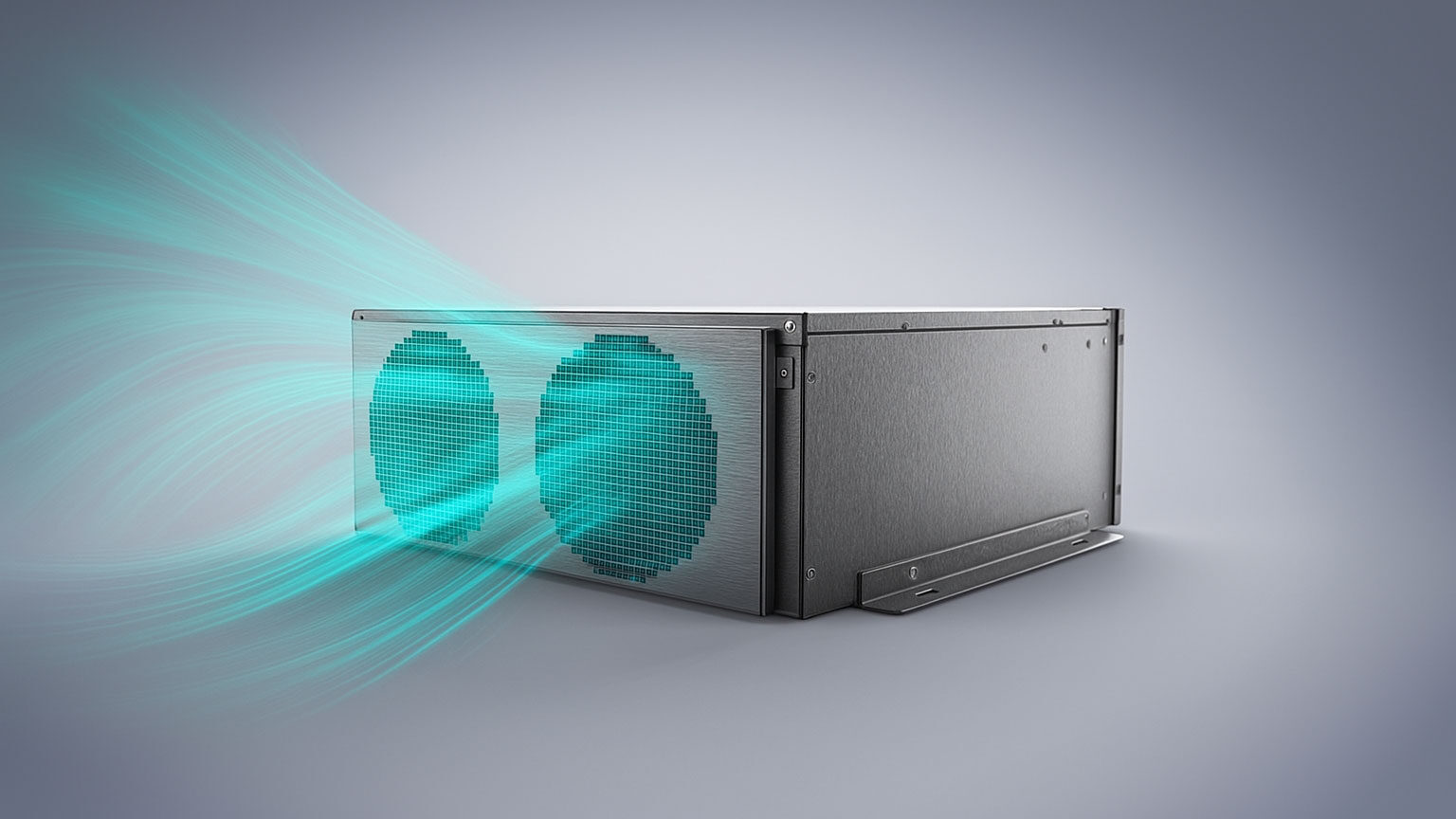

High performance in compact format with efficient cooling system

The Motion Pro concentrates maximum performance in a small space. This makes the system ideal for installation in space-critical environments. An optimized ventilation system ensures stable continuous operation, even at ambient temperatures of up to 35 °C, thus guaranteeing high operational reliability in 24/7 use.

Powerful industrial PCs for 24/7 operation AKHET® Motion Series

The AKHET® Motion series combines modern computing power with industrial reliability and a secure supply chain.

More industrial PCs

More industrial PCs

Technology
At the heart of the system are the latest Intel® Bartlett Lake processors, which set new standards thanks to increased single and multi-thread performance, integrated hardware security functions and improved energy efficiency.

DDR5 memory technology with high bandwidth (38-50+ GB/s) and capacities of up to 128 GB are also available.

The possible applications of the Motion series range from machine control and process visualization to AI-supported quality control via machine vision to high-end edge computing and predictive maintenance.

Supply chain
A key advantage of the Motion series is our company's new procurement model: all Motion models use only mainboards that are developed and produced entirely in Germany by a renowned European manufacturer. This enables us to strengthen our independence from overseas markets, shorten transportation routes and ensure stable delivery times.

The motion systems also meet the requirements of the European Union's Cyber Resilience Act (CRA). Together with production at the Pyramid in Ichtershausen, Thuringia, this creates a largely intra-European supply chain that offers our customers maximum planning, supply and version security.

AKHET® Boxflex platform For OEM solutions

The AKHET® Motion series is based on our modular BoxFlex platform. We use it to develop not only Pyramid's standard IPC portfolio, but also OEM solutions for customers with very specific hardware requirements.

You haven't found a motion system that fits your use case perfectly?

Then familiarize yourself with the BoxFlex platform here. On the page, we show you what we can do for you as an OEM and how we can develop your desired IPC from the platform: tailored to your specifications, cost-efficient and with a fast time-to-market.

More about BoxFlex platform Our OEM/ODM services
