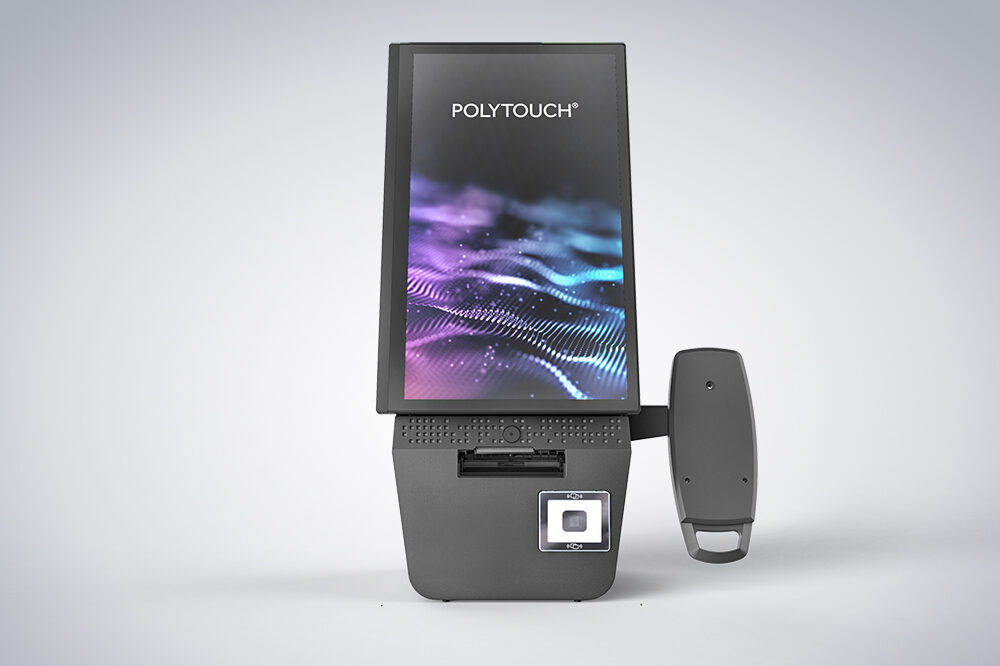

Record-breaking self-service kiosk POLYTOUCH® PIXI15.6

With a footprint of just 230 × 200 mm, the PIXI fits on a standard A4 sheet of paper. The terminal’s ultra-compact design and wall-mount and countertop installation options provide restaurant operators with powerful self-service capabilities without wasting valuable space.

Pyramid received Pyramid Good Design Award for the PIXI —one of the world’s most prestigious awards for product and industrial design. It confirms Pyramid high standards of design and quality Pyramid field of modern self-checkout systems.

The PIXI together with the POLYTOUCH® SWIFT form our entry-level product line. Together they make an unbeatably cost-efficient team. Please click here to see the big brother.

To use PIXI in a production environment, you’ll need compatible software —for example, from one of our partners or from your existing IT or POS. We’d be happy to help!

learn more

Request now Start configuration

Chassis: Steel, powder-coated
Processor: Intel® Alder Lake-N Processors N97 4 Cores/3.6 GHz+
Memory: 8 GB DDR4 3200 MHz, SSD M.2 128 GB NVMe
LAN: 2 x 10/100/1000/2500 Mbps, Realtek RTL8125BG
Dimensions: 230 × 200 × 557 mm
Mounting: table, wall (with separate bracket)
Color: RAL 9005, RAL 9010 (customer-specific from 50 pieces)
Operating system: Windows® 11 IoT Enterprise LTSC

We provide the PIXI in three versions with the latest Intel® Alder Lake technology. We have summarized the specifications of the hardware platform for you in the Features tab.

PIXI Base
With Epson printer EU-M30. The basic model is ideal for wait management in the hospitality and healthcare sectors: The guest or patient orders their menu or books their appointment at the terminal, whereupon the terminal issues a receipt with the call number.

PIXI Business (= base +)
' Payment cradle for Ingenico Lane3000 OR Verifone P400 OR Pax S300

' Wifi and Bluetooth 5.4 for wireless connection to networks

' Newland EM20-85 scanner with integrated NFC
PIXI Premium (= Business +)
' Camera 8 MP, max. 30 fps

' Controllable RGB status light

' Miniature loudspeaker & voice-optimized microphone

The following accessories are also available:

Wallmount bracket
Operating system Microsoft Windows® 11 IoT Enterprise LTSC
Adapter for the payment of your choice

Downtime means less turnover! That's why we have prescribed a simple installation and service concept for the PIXI.

A few screws are all you need to attach it . With them, the PIXI can be firmly attached to the counter or wall in less than 10 minutes.

It only takes a few simple steps to load new paper. The printer informs you in good time when the paper is about to run out.

Components such as the printer and display can be replaced within a few minutes.

With our external PuckDispenser you can use the SWIFT for paging and localization.

The slim dispenser can be mounted on virtually any wall or counter.

It consists of a dispensing unit and a magazine that holds 20 or 40 pucks and can be changed during operation.

Your guests will never run out of pucks, even at peak times.

Download data sheet

3 models for your use case

PIXI15.6 Base

PC
Printer
Dispay

IDEAL FOR SIMPLE APPLICATIONS

PIXI15.6 Business(= Basis +)

Payment holder
Scanner
Wifi

PERFECT FOR TRANSACTIONS

PIXI15.6 Premium(= Business +)

ADA keypad for accessibility
Status light & camera
Loudspeaker & microphone

MAXIMUM COMFORT &AMP; FUNCTION

Flexibility through Wall- & Deskmount

The POLYTOUCH® PIXI15.6 impresses with its mounting options. With the wallmount version , the kiosk can be mounted on walls to save space - ideal for small self-service areas where every centimeter counts. The countertop version enables secure placement on counters or tables.

Modular customization options for your needs Flexible SOT

The POLYTOUCH® PIXI15.6 adapts perfectly to the requirements of your catering business thanks to optional modules. Configure the kiosk to meet the exact requirements of your restaurant or café.

With a microphone and loudspeakers, it is ideal for voice interactions and the output of acoustic instructions. The RGB status light ensures clear visual communication - for example, to clearly indicate order processes or pick-up requests.

These modular features open up new possibilities for you to optimize your service and further improve the guest experience.
